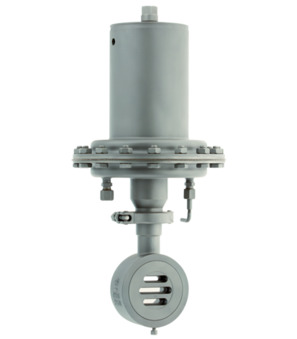

Sliding gate-pressure regulator SG17-50-WWC1/2,5

Sliding gate-pressure regulator SG17-50-WWC1/2,5

Sliding gate-pressure regulator Series SG17; Controlled by own medium; Nominal pressure PN10/40; Wafer type; Material Stainless steel 1.4408; Fixed disc Edelstahl 1.4571 beschichtet; Sliding disc Kohlewerkstoff; Nominal diameter 50mm; Kvs-value 45 (100%); Characteristic linear; Pressure range 1...2,5bar; Length 43mm

Intrastat No.: 84818079
Country of origin: Germany
Weight: 11.4 Kg
Short Itemnumber: SG1750WWC12.5
https://www.stasto.eu/web/image/product.template/129647/image_1920?unique=ce2a3b2

sliding gate-pressure regulator series SG17; controlled by own medium; nominal pressure PN10/40; wafer type; material stainless steel AISI 316/AISI 316Ti; fixed disc Edelstahl 1.4571 beschichtet; sliding disc Kohlewerkstoff; nominal diameter 50mm; kvs-value 45 (100%); characteristic linear; pressure range 1...2,5bar; length 43mm

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Length
  • Pressure range
  • Fixed disc
  • Sliding disc
  • Kvs-value
  • Characteristic

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 50 mm
Length 43 mm
pressure
Pressure range 1...2,5 bar
materials
Fixed disc Stainless steel AISI 316Ti coated
Sliding disc Carbon material
characteristics
Kvs-value 45 (100%)
Characteristic Linear

Data sheets, Instructions, 3D-files and Certificates...

ZIP
Montage- und Betriebsanleitungen
1
Betriebsanleitung_Gleitschieber-Druckregler Serie SG17_DE.pdf
Download
No documents are available for this language. Please open "Other languages."
No spare parts are available for this product.
