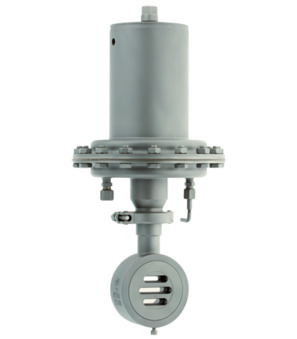

Sliding gate-pressure regulator SG17-40-WWF0,3/1,2
Sliding gate-pressure regulator Series SG17; Controlled by own medium; Nominal pressure PN10/40; Wafer type; Material Stainless steel 1.4408; Fixed disc Edelstahl 1.4571 beschichtet; Sliding disc SFC; Nominal diameter 40mm; Kvs-value 26 (100%); Characteristic linear; Pressure range 0,3...1,2bar; Length 33mm
Intrastat No.: 84818079
Country of origin: Germany
Weight: 100.0 Kg
Short Itemnumber: SG1740WWF0.31.2
Country of origin: Germany
Weight: 100.0 Kg
Short Itemnumber: SG1740WWF0.31.2
sliding gate-pressure regulator series SG17; controlled by own medium; nominal pressure PN10/40; wafer type; material stainless steel AISI 316/AISI 316Ti; fixed disc Edelstahl 1.4571 beschichtet; sliding disc SFC; nominal diameter 40mm; kvs-value 26 (100%); characteristic linear; pressure range 0,3...1,2bar; length 33mm
| dimension | |
|---|---|
| DN | 40 mm |
| Length | 33 mm |
| pressure | |
| Pressure range | 0,3...1,2 bar |
| materials | |
| Fixed disc | Stainless steel AISI 316Ti coated |
| Sliding disc | SFC |
| characteristics | |
| Kvs-value | 26 (100%) |
| Characteristic | Linear |
No spare parts are available for this product.
