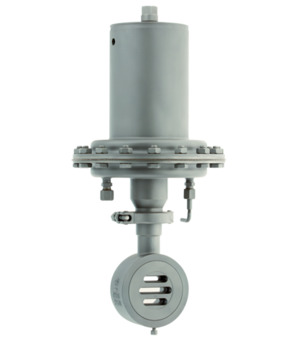

Sliding gate-pressure regulator SG17-15-WWN0,3/1,2-01

Sliding gate-pressure regulator SG17-15-WWN0,3/1,2-01

sliding gate-pressure regulator series SG17; controlled by own medium; nominal pressure PN10/40; wafer type; material stainless steel AISI 316; fixed disc STN2; sliding disc STN2/STN3; nominal diameter 15mm; kvs-value 0,26 (6,3%); characteristic linear; pressure range 0,3...1,2bar; length 33mm

Intrastat No.: 84818079
Country of origin: Germany Made in Europe
Weight: 8.4 Kg
Short Itemnumber: SG1715WWN0.31.201
https://www.stasto.eu/web/image/product.template/236933/image_1920?unique=4de5898

sliding gate-pressure regulator series SG17; controlled by own medium; nominal pressure PN10/40; wafer type; material stainless steel AISI 316; fixed disc STN2; sliding disc STN2/STN3; nominal diameter 15mm; kvs-value 0,26 (6,3%); characteristic linear; pressure range 0,3...1,2bar; length 33mm

4.665,10 € 4665.1 EUR 4.665,10 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Pressure range
  • Fixed disc
  • Sliding disc
  • Kvs-value
  • Characteristic

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0,3...1,2 bar
Fixed disc STN2
Sliding disc STN2/STN3
DN 15 mm
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0,3...1,2 bar
Fixed disc STN2
Sliding disc STN2/STN3
DN 15 mm
Kvs-value 0,26 (6,3%)
Characteristic Linear
Length 33 mm

SG17-15-WWN0,3/1,2-01

Documents

1 Documents

German / Deutsch
ZIP

Assembly and Operating Instructions

1
No spare parts are available for this product.
