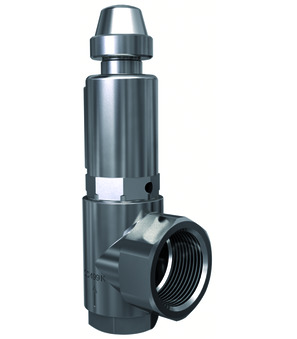

Safety valve, full stroke 3/4"NPT-11/4"-18-EPDM--40...+170-16
Safety valve, full stroke Series SF14; With twist lifting; With bellows; Body Stainless steel 1.4571/1.4408;Application: Compressed air, Gases, Vapors; Inlet 3/4"NPT; Outlet 11/4"; DN 18mm; Seal EPDM; Medium temperature -40...+170°C; Set pressure 16bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.94 Kg
Short Itemnumber: SF1434NW15.816E
Country of origin: Germany
Weight: 0.94 Kg
Short Itemnumber: SF1434NW15.816E
safety valve, full stroke series SF14; with twist lifting; with bellows; body stainless steel AISI 316Ti/AISI 316;application: compressed air, gases, vapors; inlet 3/4"NPT; outlet 11/4"; DN 18mm; seal EPDM; medium temperature -40...+170°C; set pressure 16bar
| dimension | |
|---|---|
| DN | 18 mm |
| Inlet | 3/4"NPT |
| Outlet | 11/4" |
| materials | |
| Seal | EPDM, EPDM |
| characteristics | |
| Set pressure | 16 bar |
| Medium temperature | -40...+170 °C |
No spare parts are available for this product.
