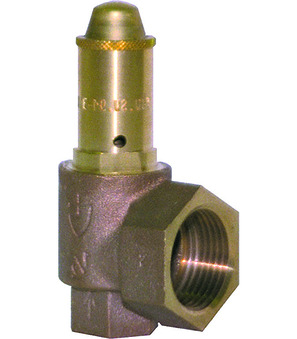

Safety valve, full stroke Series SF06; With twist lifting; With bronze-bellow; Body Bronze; Seal PTFE coal filled; Application: Toxic, flammable liquids; Medium temperature -60...225°C; Inlet G 3/4"; Outlet G 11/4"; DN 18mm; Set pressure 40,5bar
Country of origin: Germany
Weight: 1.16 Kg
Short Itemnumber: SF0634W1840.5C
safety valve, full stroke series SF06; with twist lifting; with bronze-bellow; body bronze; seal PTFE coal filled; application: toxic, flammable liquids; medium temperature -60...225°C; inlet G 3/4"; outlet G 11/4"; DN 18mm; set pressure 40,5bar
Technical specifications
| Inlet G | 3/4" |
|---|---|
| Outlet | G 1 1/4" |
| DN | 18 mm |
| Set pressure | 40,5 bar |
| Inlet G | 3/4" |
| Outlet | G 1 1/4" |
| DN | 18 mm |
| Set pressure | 40,5 bar |
SF06-34W-18-40,5-C
Documents
Language-independent
CAD / 3D
1-
STP
CADSTEP · SF0634W1840.5C
CAD-STEP 2,9 MB Updated 11/10/2026
