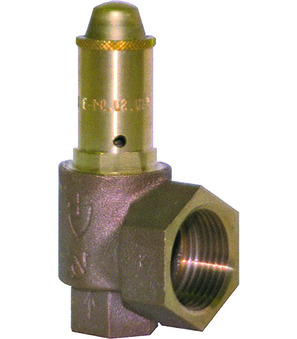

Safety valve, full stroke Series SF06; With twist lifting; With bronze-bellow; Body Bronze; Seal PTFE coal filled; Application: Toxic, flammable liquids; Medium temperature -60...225°C; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Set pressure 30bar
Country of origin: Germany
Weight: 0.74 Kg
Short Itemnumber: SF0612W15.830C
safety valve, full stroke series SF06; with twist lifting; with bronze-bellow; body bronze; seal PTFE coal filled; application: toxic, flammable liquids; medium temperature -60...225°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 30bar
Technical specifications
| Inlet G | 1/2" |
|---|---|
| Outlet | G 1" |
| DN | 15,8 mm |
| Set pressure | 30 bar |
| Inlet G | 1/2" |
| Outlet | G 1" |
| DN | 15,8 mm |
| Set pressure | 30 bar |
SF06-12W-15.8-30-C
Documents
Language-independent
CAD / 3D
1-
STP
CADSTEP · SF0612W15.830C
CAD-STEP 2,6 MB Updated 11/10/2026
