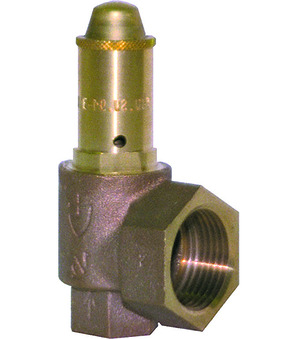

Safety valve, full stroke SF05-12W-15.8-6-V-3C
Safety valve, full stroke Series SF05; With twist lifting; Body Bronze; Seal FKM; Application: Neutral liquids; Medium temperature -20...200°C; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Set pressure 6bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.79 Kg
Short Itemnumber: SF0512W15.86V3C
Country of origin: Germany
Weight: 0.79 Kg
Short Itemnumber: SF0512W15.86V3C
safety valve, full stroke series SF05; with twist lifting; body bronze; seal FKM; application: neutral liquids; medium temperature -20...200°C; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 6bar
| dimension | |
|---|---|
| DN | 15,8 mm |
| Inlet G | 1/2" |
| Outlet | G 1" |
| characteristics | |
| Set pressure | 6 bar |
No spare parts are available for this product.
