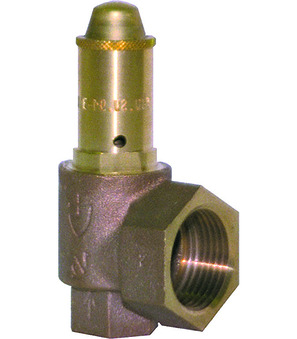

Safety valve, full stroke Series SF05; With twist lifting; Body Bronze; Seal NBR; Application: Neutral liquids; Medium temperature -30…+130°C; Possible set pressures 0,5...25bar In steps of 0,1 bar; Inlet G 1"; Outlet G 11/2"; DN 23mm; Discharge capacity at 6bar(g) water 29,3m3/h
Country of origin: Germany
Weight: 1.96 Kg
Short Itemnumber: SF0510W23X
safety valve, full stroke series SF05; with twist lifting; body bronze; seal NBR; application: neutral liquids; medium temperature -30…+130°C; possible set pressures 0,5...25bar in steps of 0,1 bar; inlet G 1"; outlet G 11/2"; DN 23mm; discharge capacity at 6bar(g) water 29,3m3/h
Technical specifications
| DN | 23 mm |
|---|---|
| Discharge capacity at 6bar(g) water | 29,3 m3/h |
| Female thread | G 1" |
| Female thread 2 | G 1 1/2" |
| DN | 23 mm |
| Discharge capacity at 6bar(g) water | 29,3 m3/h |
| Female thread | G 1" |
| Female thread 2 | G 1 1/2" |
| Brand | STASTO |
SF05-10W-23-X
