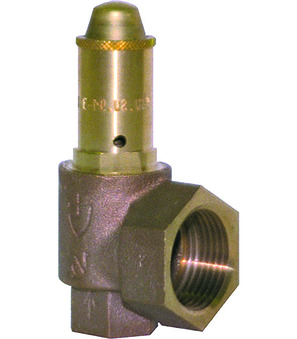

Safety valve, full stroke SF04-12W-15.8-10-6A-3C
Safety valve, full stroke Series SF04; With twist lifting; With bronze-bellow; Body Bronze; Application: Toxic, flammable gases; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Seal NBR; Medium temperature -30…130°C; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Set pressure 10bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.483 Kg
Short Itemnumber: SF0412W15.8106A3C
Country of origin: Germany
Weight: 0.483 Kg
Short Itemnumber: SF0412W15.8106A3C
safety valve, full stroke series SF04; with twist lifting; with bronze-bellow; body bronze; application: toxic, flammable gases; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; seal NBR; medium temperature -30…130°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 10bar
| dimension | |
|---|---|
| Female thread | G 1/2" |
| DN | 15,8 mm |
| Female thread 2 | G 1" |
| materials | |
| Seal | NBR |
| characteristics | |
| Medium temperature | -30...+130 °C |
No spare parts are available for this product.
