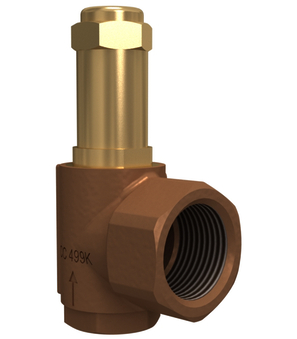

Safety valve, full stroke EPDM--40…170°C-1"-11/2"-23-10
Safety valve, full stroke Series SF03; Body Bronze; Gas-proof cover; Without lifting; Application: Flammable and toxic gases and steam; Seal EPDM; Medium temperature -40…170°C°C; Inlet G 1"; Outlet G 11/2"; DN 23mm; Set pressure 10bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 1.8 Kg
Short Itemnumber: SF0310W2310
Country of origin: Germany
Weight: 1.8 Kg
Short Itemnumber: SF0310W2310
safety valve, full stroke series SF03; body bronze; gas-proof cover; without lifting; application: flammable and toxic gases and steam; seal EPDM; medium temperature -40…170°C°C; inlet G 1"; outlet G 11/2"; DN 23mm; set pressure 10bar
| dimension | |
|---|---|
| DN | 23 mm |
| Inlet G | 1" |
| Outlet | G 1 1/2" |
| materials | |
| Seal | EPDM, EPDM |
| characteristics | |
| Set pressure | 10 bar |
| Medium temperature | -40...+170 °C |
No spare parts are available for this product.
