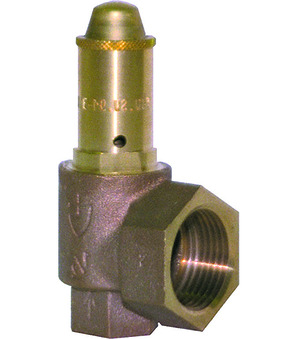

Safety valve, full stroke 3/4"-11/4"-18-608
Safety valve, full stroke Series SF01-T; With twist lifting; Body Bronze; Seal PTFE; Application: Compressed air, Gases and steams; Medium temperature -60...225°C; Possible set pressures 0,5...25bar In steps of 0,1 bar; Inlet G 3/4"; Outlet G 11/4"; DN 18mm; Discharge capacity at 6bar(g) steam 608kg/h
Intrastat No.: 84814090
Country of origin: Germany
Weight: 1.36 Kg
Short Itemnumber: SF0134W18XT
Country of origin: Germany
Weight: 1.36 Kg
Short Itemnumber: SF0134W18XT
safety valve, full stroke series SF01-T; with twist lifting; body bronze; seal PTFE; application: compressed air, gases and steams; medium temperature -60...225°C; possible set pressures 0,5...25bar in steps of 0,1 bar; inlet G 3/4"; outlet G 11/4"; DN 18mm; discharge capacity at 6bar(g) steam 608kg/h
| dimension | |
|---|---|
| Female thread | G 3/4" |
| DN | 18 mm |
| Female thread 2 | G 1 1/4" |
| characteristics | |
| Blow-off capacity at 6 bar steam | 608 kg/h |
No spare parts are available for this product.
