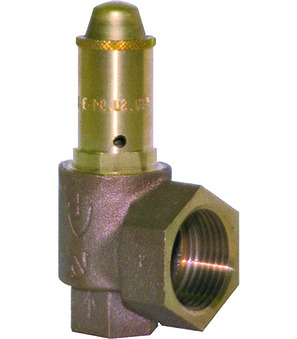

Safety valve, full stroke Series SF01; With twist lifting; Body Bronze; Seal NBR; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -30…+130°C; Possible set pressures 0,5...25bar In steps of 0,1 bar; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Discharge capacity at 6bar(g) air 335Nm3/h
Country of origin: Germany
Weight: 0.75 Kg
Short Itemnumber: SF0112W15.8X
safety valve, full stroke series SF01; with twist lifting; body bronze; seal NBR; application: compressed air, non-toxic gases, vapors; medium temperature -30…+130°C; possible set pressures 0,5...25bar in steps of 0,1 bar; inlet G 1/2"; outlet G 1"; DN 15,8mm; discharge capacity at 6bar(g) air 335Nm3/h
Technical specifications
| DN | 15,8 mm |
|---|---|
| Blow-off capacity at 6 bar air | 335 Nm3/h |
| Female thread | G 1/2" |
| Female thread 2 | G 1" |
| DN | 15,8 mm |
| Blow-off capacity at 6 bar air | 335 Nm3/h |
| Female thread | G 1/2" |
| Female thread 2 | G 1" |
| Brand | STASTO |
SF01-12W-15.8-X
