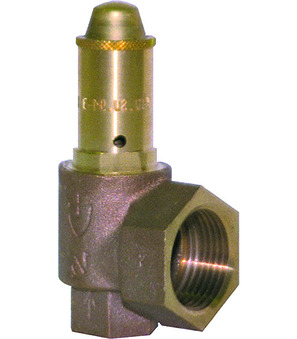

Safety valve, full stroke SF01-12W-15,8-6-T-3G
safety valve, full stroke series SF01; with twist lifting; body bronze; seal PTFE; application: compressed air, non-toxic gases, vapors; medium temperature -60…+225°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 6bar; incl. TÜV-inspection certificate EN-10204-3.2
Intrastat No.: 84814090
Country of origin: Germany
Short Itemnumber: SF0112W15.86T3G
Country of origin: Germany
Short Itemnumber: SF0112W15.86T3G
safety valve, full stroke series SF01; with twist lifting; body bronze; seal PTFE; application: compressed air, non-toxic gases, vapors; medium temperature -60…+225°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 6bar; incl. TÜV-inspection certificate EN-10204-3.2
| dimension | |
|---|---|
| DN | 15,8 mm |
| Inlet G | 1/2" |
| Outlet | G 1" |
| characteristics | |
| Set pressure | 6,1 bar |
No spare parts are available for this product.
