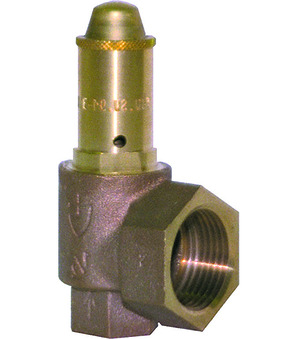

Safety valve, full stroke 1/2"-1"-15,8-2
Safety valve, full stroke Series SF01; With twist lifting; Body Bronze; Seal NBR; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -30...130°C; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Set pressure 2bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.46 Kg
Short Itemnumber: SF0112W15.82
Country of origin: Germany
Weight: 0.46 Kg
Short Itemnumber: SF0112W15.82
safety valve, full stroke series SF01; with twist lifting; body bronze; seal NBR; application: compressed air, non-toxic gases, vapors; medium temperature -30...130°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 2bar
| dimension | |
|---|---|
| DN | 15,8 mm |
| Inlet G | 1/2" |
| Outlet | G 1" |
| characteristics | |
| Set pressure | 2 bar |
No spare parts are available for this product.
