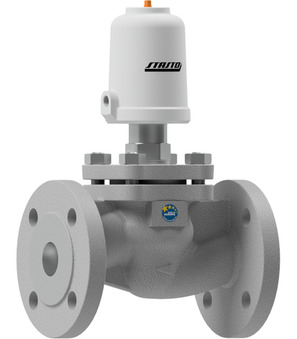

SE25-15-ST51-02
Pneumatically operated seat valve; NC; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For gaseous media; Closing with flow; Medium temperature -30...+170°C; ATEX Area 1/21; DN 15mm; Operating pressure 0...40bar; Control pressure 5…10bar; Diameter Actuator 50mm; 2 Inductive position indicator Type NCB2-V3-N0; ATEX II 1 G EEx ia IIC T6 And II 1 D Ex iaD 20 T 108° C; Pilot valve G1/8"; ATEX II 2 G EEx ia IIG T6 And II 2D Ex iaD T 80 "C; SIL2
Country of origin: Germany
Weight: 2.5 Kg
Short Itemnumber: SE2515ST5102
pneumatically operated seat valve; NC; body stainless steel AISI 316; seal PTFE; flange PN40; for gaseous media; closing with flow; medium temperature -30...+170°C; ATEX area 1/21; DN 15mm; operating pressure 0...40bar; control pressure 5…10bar; diameter actuator 50mm; 2 inductive position indicator type NCB2-V3-N0; ATEX II 1 G EEx ia IIC T6 and II 1 D Ex iaD 20 T 108° C; pilot valve G1/8"; ATEX II 2 G EEx ia IIG T6 and II 2D Ex iaD T 80 "C; SIL2
