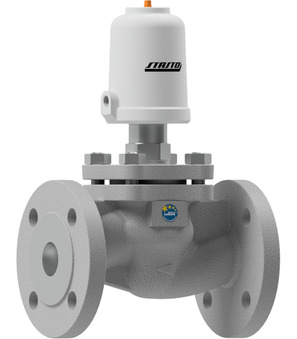

Pneumatically operated seat valve SE24-40-ST52

Pneumatically operated seat valve SE24-40-ST52

Pneumatically operated seat valve Series SE24-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NC; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For liquids; Closing against flow; Medium temperature -30...+170°C; DN 40mm; Operating pressure 0...1,9bar; Control pressure 4,5...10bar; Diameter Actuator 50mm

Intrastat No.: 84818079
Country of origin: Germany
Weight: 8.1 Kg
Short Itemnumber: SE2440ST52
https://www.stasto.eu/web/image/product.template/150236/image_1920?unique=3190a4b

pneumatically operated seat valve series SE24-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NC; body stainless steel AISI 316; seal PTFE; flange PN40; for liquids; closing against flow; medium temperature -30...+170°C; DN 40mm; operating pressure 0...1,9bar; control pressure 4,5...10bar; diameter actuator 50mm

1.160,30 € 1160.3 EUR 1.160,30 €

price on request

  • DN
  • Cable length
  • Flange
  • Diameter Actuator
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Operating pressure
  • Control pressure
  • Coil
  • Actuator
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 40 mm
Flange PN40
Diameter Actuator 50 mm
design
Design ATEX
pressure
Operating pressure 0...1,9 bar
Control pressure 4,5...10 bar
