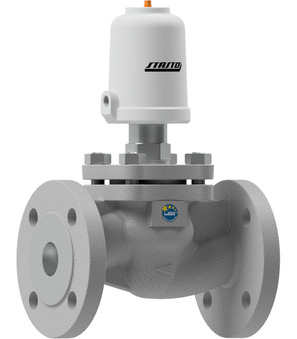

Pneumatically operated seat valve Series SE24-ST; NC; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For liquids; Closing against flow; Medium temperature -30...+170°C; DN 15mm; Operating pressure 0...27bar; Control pressure 4,5...10bar; Diameter Actuator 50mm
Country of origin: Germany
Weight: 3.3 Kg
Short Itemnumber: SE2415ST52
pneumatically operated seat valve series SE24-ST; NC; body stainless steel AISI 316; seal PTFE; flange PN40; for liquids; closing against flow; medium temperature -30...+170°C; DN 15mm; operating pressure 0...27bar; control pressure 4,5...10bar; diameter actuator 50mm
Technical specifications
| DN | 15 mm |
|---|---|
| Operating pressure | 0...27 bar |
| Control pressure | 4,5...10 bar |
| Diameter Actuator | 50 mm |
| DN | 15 mm |
| Operating pressure | 0...27 bar |
| Control pressure | 4,5...10 bar |
| Diameter Actuator | 50 mm |
| Flange | PN40 |
| Design | ATEX |
SE24-15-ST52
