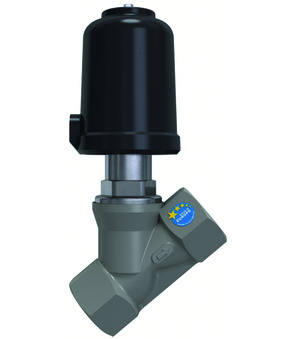

Pneumatically operated seat valve; NO; Body Stainless steel 1.4408; Cap Plastic; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -30...+170°C; G 11/4"; DN 32mm; Operating pressure 0-16bar; Control pressure 5-10bar; Diameter Actuator 80mm
Country of origin: Germany
Weight: 2.06 Kg
Short Itemnumber: SE22114ST81
pneumatically operated seat valve; NO; body stainless steel AISI 316; cap plastic; seal PTFE; female thread; for gaseous media and liquids; medium temperature -30...+170°C; G 11/4"; DN 32mm; operating pressure 0-16bar; control pressure 5-10bar; diameter actuator 80mm
SE22-114-ST81
Documents
Language-independent
CAD / 3D
1-
STP
CADSTEP · SE22114ST81
CAD-STEP 640 KB Updated 04/10/2026
