STASTO Allgemeine Preisliste (EUR)
SE09-100-DN1251-01

SE09-100-DN1251-01

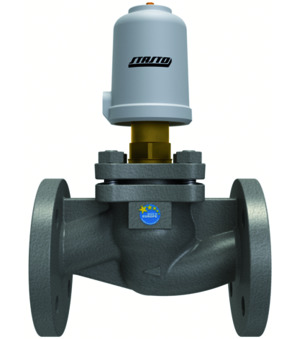

Pneumatically operated seat valve; NC; Body EN-GJS-400-18-LT; Seal NBR; Flange PN16; Pressure compensated cone for high pressure; Medium temperature -30...+80°C; DN 100mm; Operating pressure 0-16bar; Control pressure 2,2-10bar; Diameter Actuator 125mm; 2 Limit switch Inductive IN 5121; 10-36VDC; Electrical position indicator with connector

Intrastat No.: 84818079
Country of origin: Germany Made in Europe
Weight: 40.8 Kg
Short Itemnumber: SE09100DN125101
https://www.stasto.eu/web/image/product.template/140237/image_1920?unique=b5fa7f5

pneumatically operated seat valve; NC; body EN-GJS-400-18-LT; seal NBR; flange PN16; pressure compensated cone for high pressure; medium temperature -30...+80°C; DN 100mm; operating pressure 0-16bar; control pressure 2,2-10bar; diameter actuator 125mm; 2 limit switch inductive IN 5121; 10-36VDC; electrical position indicator with connector

6.339,50 € 6339.5 EUR 6.339,50 €

Not Available For Sale

excl. tax

This combination does not exist.

Availability:
See availability
Contact Us
Documents
Data sheets, drawings and CAD files
No Specifications

SE09-100-DN1251-01

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
4051834 x 1.0 Pcs
4051834
Electrical position indication MN Close Seat valve; 2 Limit switch Inductive IN 5121; 10...36VDC; Electrical position indicator with connector; Retrofit kit Without Cap
Add to Cart
Accessory Products
4051834
4051834
SK-SE09-100-DN1251-01
SK-SE09-100-DN1251-01
