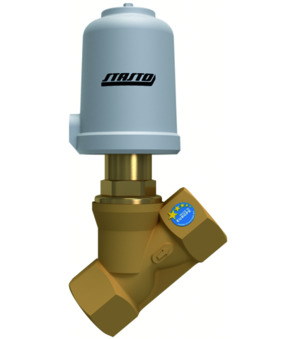

Pneumatically operated seat valve; NC; Body Bronze; Seal FKM; Female thread; For liquids; Closing against flow; Medium temperature -15...+170°C; G 11/4"; DN 32mm; Operating pressure 0-5,2bar; Control pressure 5,7-10bar; Diameter Actuator 50mm
Country of origin: Germany
Weight: 1.88 Kg
Short Itemnumber: SE02114RV53
pneumatically operated seat valve; NC; body bronze; seal FKM; female thread; for liquids; closing against flow; medium temperature -15...+170°C; G 11/4"; DN 32mm; operating pressure 0-5,2bar; control pressure 5,7-10bar; diameter actuator 50mm
SE02-114-RV53
Documents
Language-independent
CAD / 3D
1-
STP
CADSTEP · SE02114RV53
CAD-STEP 1,5 MB Updated 04/10/2026
