SE01-S15-ST51-01

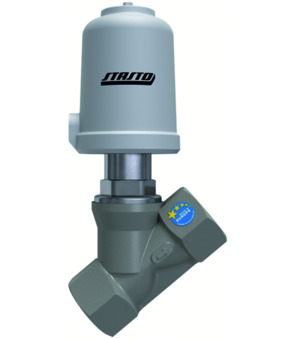

Pneumatically operated seat valve; NC; Body Stainless steel 1.4408; Seal PTFE; Butt weld ends according to Drawing R0094 ; For gaseous media; Closing with flow; Medium temperature -30...+200°C; DN 15mm; Operating pressure 0-40bar; Control pressure 5-10bar; Diameter Actuator 50mm; High temperature design; Piston springs Stainless steel; Head end gasket Klinger Top-chem-2000
Country of origin: Germany
Weight: 100.0 Kg
Short Itemnumber: SE01S15ST5101
pneumatically operated seat valve; NC; body stainless steel AISI 316; seal PTFE; butt weld ends according to drawing R0094 ; for gaseous media; closing with flow; medium temperature -30...+200°C; DN 15mm; operating pressure 0-40bar; control pressure 5-10bar; diameter actuator 50mm; high temperature design; piston springs stainless steel; head end gasket Klinger Top-chem-2000
