SE01-I32-ST81

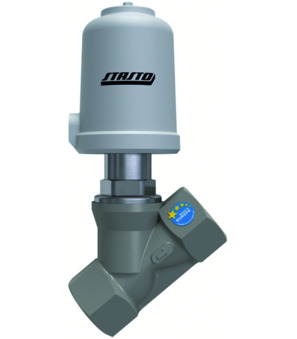

Pneumatically operated seat valve; NC; Body Stainless steel 1.4408; Seal PTFE; Butt weld ends according to ISO; For gaseous media; Closing with flow; Medium temperature -30...+170°C; DN 32mm; Operating pressure 0-30bar; Control pressure 5-10bar; Diameter Actuator 80mm
Intrastat No.: 84818079
Country of origin: Germany
Weight: 100.0 Kg
Short Itemnumber: SE01I32ST81
Country of origin: Germany
Weight: 100.0 Kg
Short Itemnumber: SE01I32ST81
pneumatically operated seat valve; NC; body stainless steel AISI 316; seal PTFE; butt weld ends according to ISO; for gaseous media; closing with flow; medium temperature -30...+170°C; DN 32mm; operating pressure 0-30bar; control pressure 5-10bar; diameter actuator 80mm
No Specifications
No spare parts are available for this product.
