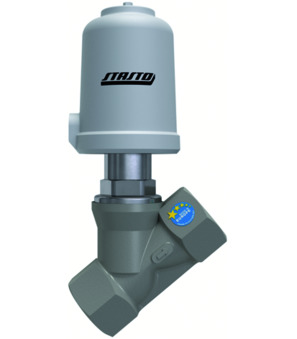

Pneumatically operated seat valve Series SE01-ST; NC; Body Stainless steel 1.4408; Seal PTFE; O-ring made of EPDM; Slotted stainless steel disc; Female thread; For gaseous media; Closing with flow; Medium temperature -30...+170°C; G 3/4"; DN 20mm; Operating pressure 0-27bar; Control pressure 5-10bar; Diameter Actuator 50mm; Packing For higher chemical resistance
Intrastat No.: 84818079
Country of origin: Germany
Short Itemnumber: SE0134ST5107
Country of origin: Germany
Short Itemnumber: SE0134ST5107
pneumatically operated seat valve series SE01-ST; NC; body stainless steel AISI 316; seal PTFE; O-ring made of EPDM; Slotted stainless steel disc; female thread; for gaseous media; closing with flow; medium temperature -30...+170°C; G 3/4"; DN 20mm; operating pressure 0-27bar; control pressure 5-10bar; diameter actuator 50mm; packing for higher chemical resistance
Technical specifications
| DN | 20 mm |
|---|---|
| Operating pressure | 0...27 bar |
| Control pressure | 5...10 bar |
| Diameter Actuator | 50 mm |
| DN | 20 mm |
| Operating pressure | 0...27 bar |
| Control pressure | 5...10 bar |
| Diameter Actuator | 50 mm |
| Medium temperature | -30...+170 °C |
| Female thread | G 3/4" |
| Brand | STASTO |
No spare parts are available for this product.
