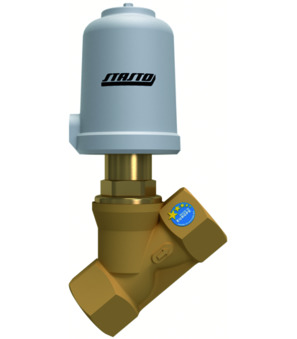

SE01-10-RT81-05
Pneumatically operated seat valve; NC; Body Bronze; Seal PTFE; Female thread; For gaseous media (Steam Max. 140°C); Closing with flow; Medium temperature -30...+170°C; G 1"; DN 25mm; Operating pressure 0-16bar; Control pressure 5-10bar; Diameter Actuator 80mm; 2 Inductive position indicator 8V DC; Explosion protected; II 1 G EEx ia IIC T6 And II 1 D Ex iaD 20 T 108°C; Electrical position indicator with cable bushing
Country of origin: Germany
Weight: 2.7 Kg
Short Itemnumber: SE0110RT8105
pneumatically operated seat valve; NC; body bronze; seal PTFE; female thread; for gaseous media (steam max. 140°C); closing with flow; medium temperature -30...+170°C; G 1"; DN 25mm; operating pressure 0-16bar; control pressure 5-10bar; diameter actuator 80mm; 2 inductive position indicator 8V DC; explosion protected; II 1 G EEx ia IIC T6 and II 1 D Ex iaD 20 T 108°C; electrical position indicator with cable bushing
