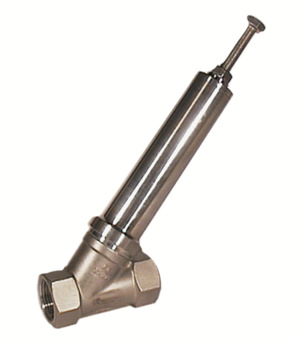

Overflow valve DN50/PN40-50-0,5...2,5-PTFE/Kalrez--10...+180°C
Overflow valve Series RV28; Body 1.4408; Incl. sealed spring chamber; Connection DN50/PN40; DN 50mm; Pressure range 0,5...2,5bar; Seal PTFE/Kalrez; Medium temperature -10...+180°C°C
Intrastat No.: 84814010
Country of origin: Germany
Weight: 8.68 Kg
Short Itemnumber: RV285040500.52.5T0
Country of origin: Germany
Weight: 8.68 Kg
Short Itemnumber: RV285040500.52.5T0
overflow valve series RV28; body AISI 316; incl. sealed spring chamber; connection DN50/PN40; DN 50mm; pressure range 0,5...2,5bar; seal PTFE/Kalrez; medium temperature -10...+180°C°C
| dimension | |
|---|---|
| Connection | DN50/PN40 |
| DN | 50 mm |
| pressure | |
| Pressure range | 0,5...2,5 bar |
| materials | |
| Seal | PTFE/Kalrez |
| characteristics | |
| Medium temperature | -10...+180 °C |
No spare parts are available for this product.
