Overflow valve DN40/PN40-40-0,8...4-PTFE/Kalrez--10...+180°C

Price.

999.999,00 €
Overflow valve Series RV28 Store
  1. Products
  2. Armatures
  3. Pressure regulators, safety valves and accessories
  4. Other materiales - A07
  5. Overflow valve Series RV28
  6. RV28-4040-40-0,8/4-T-0

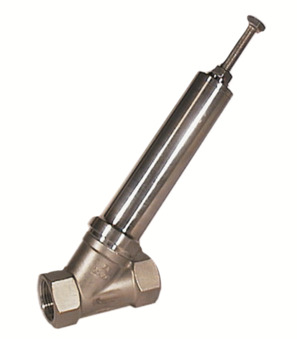

Overflow valve DN40/PN40-40-0,8...4-PTFE/Kalrez--10...+180°C
Overflow valve DN40/PN40-40-0,8...4-FKM--15...+150°C
Overflow valve DN40/PN40-40-0,8...4-FKM--15...+150°C
price on request
Overflow valve DN50/PN40-50-0,5...2,5-FKM--15...+150°C
Overflow valve DN50/PN40-50-0,5...2,5-FKM--15...+150°C
price on request

Overflow valve DN40/PN40-40-0,8...4-PTFE/Kalrez--10...+180°C

Overflow valve Series RV28; Body 1.4408; Incl. sealed spring chamber; Connection DN40/PN40; DN 40mm; Pressure range 0,8...4bar; Seal PTFE/Kalrez; Medium temperature -10...+180°C°C

Intrastat No.: 84814010
Country of origin: Germany
Weight: 6.37 Kg
Short Itemnumber:RV284040400.84T0
https://www.stasto.eu/web/image/product.template/144420/image_1920?unique=432b183

overflow valve series RV28; body AISI 316; incl. sealed spring chamber; connection DN40/PN40; DN 40mm; pressure range 0,8...4bar; seal PTFE/Kalrez; medium temperature -10...+180°C°C

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Connection
  • DN
  • Pressure range
  • Seal
  • Medium temperature

This combination does not exist.

Availability:
Contact Us
dimension
Connection DN40/PN40
DN 40 mm
pressure
Pressure range 0,8...4 bar
materials
Seal PTFE/Kalrez
characteristics
Medium temperature -10...+180 °C
No spare parts are available for this product.
