Relief valve Series RV12 Store

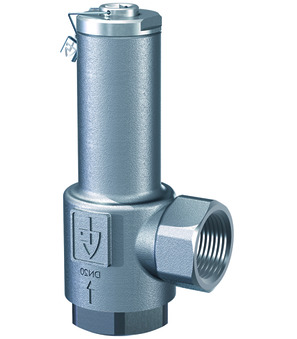

Relief valve RV12-34-16-0,5-T-9A

Relief valve RV12-34-16-0,5-T-9A

Relief valve Series RV12; Oil- and gas-proof cover; Body 1.4404/1.4408; Without TÜV-inspection number; Connection 3/4"; DN 16mm; Pressure range 0,5bar; Seal PTFE/FKM; Medium temperature -60...+225°C

Intrastat No.: 84814010
Country of origin: Germany
Short Itemnumber: RV1234160.5T9A

relief valve series RV12; oil- and gas-proof cover; body AISI 316L/AISI 316; without TÜV-inspection number; connection 3/4"; DN 16mm; pressure range 0,5bar; seal PTFE/FKM; medium temperature -60...+225°C

1.256,80 € 1256.8 EUR 1.256,80 €

Connection
- 3/4"
DN
- 16 mm
Pressure range
- 0,5 bar
Seal
- PTFE/FKM
Medium temperature
- -60...+225 °C

This combination does not exist.

Availability:

dimension
Connection	3/4"
DN	16 mm
pressure
Pressure range	0,5 bar
materials
Seal	PTFE/FKM
characteristics
Medium temperature	-60...+225 °C

Data sheets, Instructions, 3D-files and Certificates...

In your language

Assembly and Operating Instructions

1

Assembly and operating instructions_Relief valve Series RV12_EN.pdf

Montážní a provozní návody

1

Návod k montáži a obsluze_odlehčovací ventil série RV12_CS.pdf

Datenblätter

1

Datenblatt_Entlastungsventil Serie RV12_DE.pdf

Montage- und Betriebsanleitungen

1

Montage- und Betriebsanleitung_Entlastungsventil Serie RV12_DE.pdf

Szerelési és kezelési útmutatók

1

Összeszerelési és kezelési útmutató_nyomáshatároló szelep sorozat RV12_HU.pdf

Instrukcje montażu i obsługi

1

Instrukcja montażu i obsługi_zawór upustowy Seria RV12_PL.pdf

Navodila za montažo in uporabo

1

Navodila za montažo in uporabo_Razbremenilni ventil serija RV12_SL.pdf

Assembly and Operating Instructions

1

Uputstvo za montažu i upotrebu_prelivni ventil serije RV12_SRLATIN.pdf

No spare parts are available for this product.
