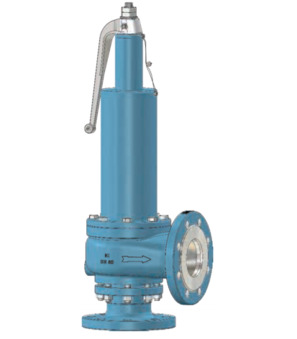

RV11-50-40-8-V-4B
Relief valve; For vapors, gases and liquids; Body made of carbon steel A216-WCB; Spring cover And Outlet body 1.0619; Inlet DN50/PN16; Outlet DN50/PN16; DN 40mm; Valve head C; Seat seal FPM; Other seals FPM; Set pressure 8bar; With Cone-Insert ring; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Incl. Inspection certificate EN-10204-3.1; For material (Inlet body); Incl. Inspection certificate EN-10204-3.1; For material (Seat); Incl. TR-CU Certificate of compliance with the order
Consists of:
Declaration of conformity, Valve- And Package marking EAC-Logo; Incl. Risk analysis-Russia; Incl. Valve pass-Russia; Incl. ATEX-declaration
Country of origin: Germany
Weight: 15.5 Kg
Short Itemnumber:RV1150408V4B
relief valve; for vapors, gases and liquids; body made of carbon steel A216-WCB; spring cover and outlet body A216-WCB; inlet DN50/PN16; outlet DN50/PN16; DN 40mm; valve head C; seat seal FPM; other seals FPM; set pressure 8bar; with cone-insert ring; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; incl. inspection certificate EN-10204-3.1; for material (inlet body); incl. inspection certificate EN-10204-3.1; for material (seat); incl. TR-CU certificate of compliance with the order
consists of:
declaration of conformity, valve- and package marking EAC-logo; incl. risk analysis-Russia; incl. valve pass-Russia; incl. ATEX-declaration
| Design | ATEX |
