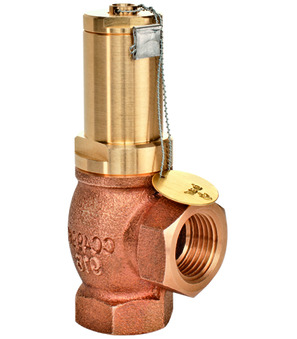

RV05-114-30-XX(12...20)-T-9A
Relief valve Series RV05; Oil- and gas-proof cover; Body Bronze; Without TÜV-inspection number; Fixed and sealed; Possible set pressures 0,2...20bar In steps of 0,1 bar; G 11/4"; DN 30mm; Seal PTFE/FKM; Medium temperature -60...+225°C
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.0 Kg
Short Itemnumber: RV0511430XX12...20T9A
Country of origin: Germany
Weight: 0.0 Kg
Short Itemnumber: RV0511430XX12...20T9A
relief valve series RV05; oil- and gas-proof cover; body bronze; without TÜV-inspection number; Fixed and sealed; possible set pressures 0,2...20bar in steps of 0,1 bar; G 11/4"; DN 30mm; seal PTFE/FKM; medium temperature -60...+225°C
| dimension | |
|---|---|
| Female thread | G 1 1/4" |
| DN | 30 mm |
| Female thread 2 | G 1 1/4" |
| materials | |
| Seal | PTFE/FKM |
| characteristics | |
| Medium temperature | -60...+225 °C |
No spare parts are available for this product.
