Flow monitors With Inspection glass 1"-15…45-10-250-3-158,5
Flow monitors With Inspection glass 1/2"-6…15-16-230-3-114
Flow monitors With Inspection glass 1/2"-6…15-16-230-3-114
304,90 €
304,90 €
Flow monitors With Inspection glass 1/2"-9,5...24-16-230-3-114
Flow monitors With Inspection glass 1/2"-9,5...24-16-230-3-114
price on request

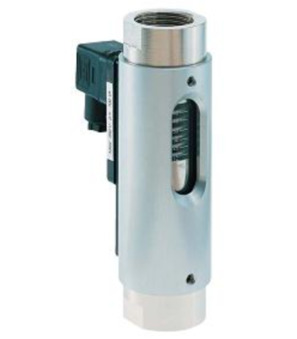

Flow monitors With Inspection glass 1"-15…45-10-250-3-158,5

Flow monitors With Inspection glass Series RVO/U; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 1"; Switching range 15…45L/min; Maximum pressure 10bar; U max. 250V; I max. 3A; Length 158,5mm

Intrastat No.: 90261081
Country of origin: Germany
Weight: 1.27 Kg
Short Itemnumber:RV0U145MS
https://www.stasto.eu/web/image/product.template/64531/image_1920?unique=a6d9811

Flow monitors With Inspection glass Series RVO/U; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 1"; Switching range 15…45L/min; Maximum pressure 10bar; U max. 250V; I max. 3A; Length 158,5mm

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Connection
  • Length
  • U max.
  • I max.
  • Maximum pressure
  • Switching range

This combination does not exist.

Availability:
Contact Us
dimension
Connection 1"
Length 158,5 mm
Electrical key figures
U max. 250 V
I max. 3 A
pressure
Maximum pressure 10 bar
characteristics
Switching range 15...45 l/min

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flow monitors With Inspection glass Series RVO/U_EN.pdf
Download

ZIP
Datové listy
1
Datový list_Průtokový spínač s Sklíčko série RVO/U_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Strömungswächter mit Schauglas Serie RVO/U_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_áramlásjelzők hozzá kémlelő üveg sorozat RVO/U_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_czujnik przepływu z wziernik Seria RVO/U_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Senzorji pretoka s kontrolno okence serija RVO/U_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_indikatori protoka sa reviziono staklo serije RVO/U_SRLATIN.pdf
Download
No spare parts are available for this product.
