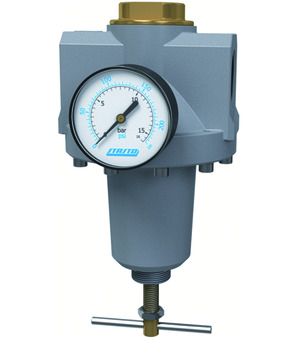

Pressure regulator Series Gold RE04; Relieving; Connection 11/2"; Flow at 6bar/Δp=1bar 16500Nl/min; Pressure range 0,5-10bar; Inlet pressure 25bar
Intrastat No.: 84811099
Country of origin: Italy
Weight: 2.28 Kg
Short Itemnumber: RE041120.510MA
Country of origin: Italy
Weight: 2.28 Kg
Short Itemnumber: RE041120.510MA
Scope of delivery
pressure regulator, manometer
pressure regulator series Gold RE04; relieving; connection 11/2"; flow at 6bar/Δp=1bar 16500Nl/min; pressure range 0,5-10bar; inlet pressure 25bar
Technical specifications
| Connection | 1 1/2" |
|---|---|
| Pressure range | 0,5...10 bar |
| Flow at 6bar/Δp=1bar | 16500 Nl/min |
| Inlet pressure | 25 bar |
| Connection | 1 1/2" |
| Pressure range | 0,5...10 bar |
| Flow at 6bar/Δp=1bar | 16500 Nl/min |
| Inlet pressure | 25 bar |
| Brand | STASTO |
RE04-112-0,5/10-MA
Documents
Czech / Čeština
Data Sheets
1-
PDF
Datový list · regulátor tlaku RE04-112-0,5/10-MA · CS
Data sheet 211 KB Updated 26/09/2026
Assembly and Operating Instructions
1-
PDF
Návod k montáži a obsluze · Úpravné jednotky - série Gold · CS
Assembly and operating instructions 128 KB Updated 13/06/2026
Declarations of Conformity
1-
PDF
Prohlášení o shodě · Úpravné jednotky - série Gold · CS
Declaration of conformity 88 KB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
Danish / Dansk
Data Sheets
1-
PDF
Datablad · Trykregulator RE04-112-0,5/10-MA · DA · DK
Data sheet 220 KB Updated 26/09/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Druckregler RE04-112-0,5/10-MA · DE
Data sheet 220 KB Updated 26/09/2026
Assembly and Operating Instructions
1-
PDF
Montage- und Betriebsanleitung · Wartungsgeräte - Serie Gold · DE
Assembly and operating instructions 130 KB Updated 13/06/2026
Declarations of Conformity
1-
PDF
Konformitätserklärung · Wartungsgeräte - Serie Gold · DE
Declaration of conformity 87 KB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
Greek / Ελληνικά
Data Sheets
1-
PDF
Δελτίο δεδομένων · Ρυθμιστής πίεσης RE04-112-0,5/10-MA · EL · GR
Data sheet 222 KB Updated 26/09/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
English
Data Sheets
1-
PDF
Data sheet · Pressure regulator RE04-112-0,5/10-MA · EN
Data sheet 219 KB Updated 26/09/2026
Assembly and Operating Instructions
1-
PDF
Assembly and operating instructions · Maintenance devices - series Gold · EN
Assembly and operating instructions 128 KB Updated 13/06/2026
Declarations of Conformity
1-
PDF
Declaration of conformity · Maintenance devices - series Gold · EN
Declaration of conformity 86 KB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
Spanish / Español
Data Sheets
1-
PDF
Ficha técnica · Regulador de presión RE04-112-0,5/10-MA · ES
Data sheet 220 KB Updated 26/09/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
Finnish / Suomi
Data Sheets
1-
PDF
Tietolehti · Paineensäädin RE04-112-0,5/10-MA · FI
Data sheet 219 KB Updated 26/09/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
French / Français
Data Sheets
1-
PDF
Fiche technique · Régulateur de pression RE04-112-0,5/10-MA · FR
Data sheet 220 KB Updated 26/09/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
Croatian / hrvatski jezik
Data Sheets
1-
PDF
Podatkovni list · Regulator tlaka RE04-112-0,5/10-MA · HR
Data sheet 220 KB Updated 26/09/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
Hungarian / Magyar
Data Sheets
1-
PDF
Adatlap · nyomásszabályozó RE04-112-0,5/10-MA · HU
Data sheet 220 KB Updated 26/09/2026
Assembly and Operating Instructions
1-
PDF
Összeszerelési és kezelési útmutató · Levegőelőkészítők - Gold széria · HU
Assembly and operating instructions 129 KB Updated 13/06/2026
Declarations of Conformity
1-
PDF
Megfelelőségi nyilatkozat · Levegőelőkészítők - Gold széria · HU
Declaration of conformity 88 KB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
Italian / Italiano
Data Sheets
1-
PDF
Scheda tecnica · Regolatore di pressione RE04-112-0,5/10-MA · IT
Data sheet 219 KB Updated 26/09/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
Norwegian Bokmål / Norsk bokmål
Data Sheets
1-
PDF
Datablad · Trykkregulator RE04-112-0,5/10-MA · NB · NO
Data sheet 220 KB Updated 26/09/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
Dutch / Nederlands
Data Sheets
1-
PDF
Datasheet · Drukregelaar RE04-112-0,5/10-MA · NL
Data sheet 219 KB Updated 26/09/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
Polish / Język polski
Data Sheets
1-
PDF
Arkusz danych · Reduktory ciśnienia RE04-112-0,5/10-MA · PL
Data sheet 220 KB Updated 26/09/2026
Assembly and Operating Instructions
1-
PDF
Instrukcja montażu i obsługi · zespoły przygotowania sprężonego powietrza - seria Gold · PL
Assembly and operating instructions 155 KB Updated 13/06/2026
Declarations of Conformity
1-
PDF
Deklaracja zgodności · zespoły przygotowania sprężonego powietrza - seria Gold · PL
Declaration of conformity 88 KB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
Romanian / română
Data Sheets
1-
PDF
Fișă de date · Regulator de presiune RE04-112-0,5/10-MA · RO
Data sheet 219 KB Updated 26/09/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
Slovenian / slovenščina
Data Sheets
1-
PDF
Podatkovni list · Regulatorji tlaka RE04-112-0,5/10-MA · SL
Data sheet 219 KB Updated 26/09/2026
Assembly and Operating Instructions
1-
PDF
Navodila za montažo in uporabo · Naprave za pripravo stisnjenega zraka - serija Gold · SL
Assembly and operating instructions 127 KB Updated 13/06/2026
Declarations of Conformity
1-
PDF
Izjava o skladnosti · Naprave za pripravo stisnjenega zraka - serija Gold · SL
Declaration of conformity 87 KB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
Serbian (Latin) / srpski
Data Sheets
1-
PDF
Tehnički list · regulator pritiska RE04-112-0,5/10-MA · SRLATIN
Data sheet 219 KB Updated 26/09/2026
Assembly and Operating Instructions
1-
PDF
Uputstvo za montažu i upotrebu · Uređaji za pripremu vazduha - serija Gold · SRLATIN
Assembly and operating instructions 144 KB Updated 13/06/2026
Declarations of Conformity
1-
PDF
Deklaracija o usklađenosti · Uređaji za pripremu vazduha - serija Gold · SRLATIN
Declaration of conformity 87 KB Updated 13/06/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
Swedish / Svenska
Data Sheets
1-
PDF
Datablad · Tryckregulator RE04-112-0,5/10-MA · SV
Data sheet 220 KB Updated 26/09/2026
CAD / 3D
1-
STP
CADSTEP · RE041120.510MA
CAD-STEP 578 KB Updated 27/09/2026
SP-RE04-114/112-0,5/10
x 1.0 Pcs
SP-RE04-114/112-0,5/10
Compression spring; For pressure regulator RE04-114/112-0,5/10
WP-RE04-114/112
x 1.0 Pcs
WP-RE04-114/112
Set of wear parts; For pressure regulator Series Gold; RE04-114/112
RE04-112-0,5/10
x 1.0 Pcs
RE04-112-0,5/10
Pressure regulator; Relieving; Connection 11/2"; Flow at 6bar 16500Nl/min; Pressure range 0,5-10bar; Inlet pressure 25bar
MA001-63R-16-D
x 1.0 Pcs
Bourdon tube manometer MA001-63R-16-D
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 63mm; Indicating range 0-16/0-230; Unit bar/psi; Connection 1/4"
