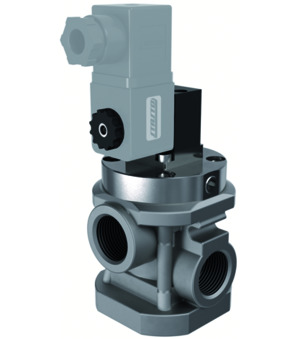

3/2-way poppet valve PV32W1S6E20V
3/2-way poppet valve Series PV; Actuation Electrical/spring; External control air connection; Pressure range -1...0bar; NC; Type of coil SCN; Connector size 32mm; Connection 2"; Nominal diameter 50mm; Control port 1/8"; Flow rate 60000Nl/min
Intrastat No.: 84812090
Country of origin: Italy
Weight: 0.62 Kg
Short Itemnumber: PV32W1S6E20V
Country of origin: Italy
Weight: 0.62 Kg
Short Itemnumber: PV32W1S6E20V
3/2-way poppet valve series PV; actuation electrical/spring; external control air connection; pressure range -1...0bar; NC; type of coil SCN; connector size 32mm; connection 2"; nominal diameter 50mm; control port 1/8"; flow rate 60000Nl/min
| dimension | |
|---|---|
| Connection | 2" |
| DN | 50 mm |
| Control port | 1/8" |
| Designs | |
| Connector size | 32 mm |
| characteristics | |
| Coil | SCN |
| Flow rate | 60000 Nl/min |
No spare parts are available for this product.
