Low pressure regulator Series PR25 Store

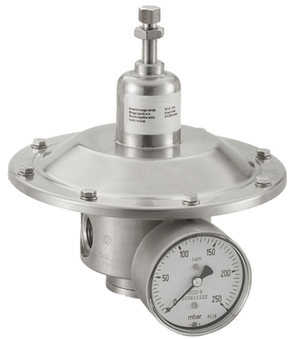

Low pressure regulator PR25-12W1-0.15/0.7

Name: Low pressure regulator PR25-12W1-0.15/0.7
Brand: STASTO
SKU: PR25-12W1-0.15/0.7

Low pressure regulator Series PR25; Body 1.4404; Seals FKM; Medium temperature -20...+80°C; Manometer connection 1/4"; Connection Inlet G 1/2"; Outlet G 3/4"; Pressure range 0,15-0,7bar; Max. inlet pressure 6bar; Flow at 6bar/Δp=5bar 1000Nl/min; Suitable manometer MA029-63R-1

Intrastat No.: 84811019
Country of origin: Italy
Weight: 2.05 Kg
Short Itemnumber: PR2512W10.150.7

low pressure regulator series PR25; body AISI 316L; seals FKM; medium temperature -20...+80°C; manometer connection 1/4"; connection inlet G 1/2"; outlet G 3/4"; pressure range 0,15-0,7bar; max. inlet pressure 6bar; flow at 6bar/Δp=5bar 1000Nl/min; suitable manometer MA029-63R-1

On request

Input connection
- G 1/2"
Pressure range
- 0,15...0,7 bar
Max. inlet pressure
- 6 bar
Suitable manometer
- MA029-63R-1
Flow rate at 6bar/Δp=5bar
- 1000 Nl/min
Output thread
- G 3/4"

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
Input connection	G 1/2"
pressure
Pressure range	0,15...0,7 bar
characteristics
Max. inlet pressure	6 bar
Suitable manometer	MA029-63R-1
Flow rate at 6bar/Δp=5bar	1000 Nl/min
Others
Output thread	G 3/4"
