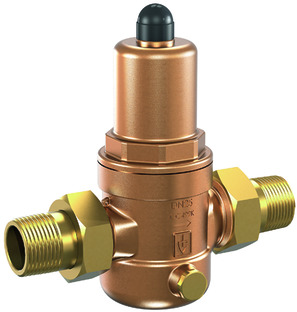

Pressure regulator PR03-12-1/8-V-MA

Pressure regulator PR03-12-1/8-V-MA

PR03-12-1/8-V
Pressure regulator Series PR03-V; Body Bronze; Fine screen Stainless steel; Spring cover, Seals FKM; Max. Inlet pressure 40bar; Operating pressure range 1...8bar; Medium temperature -10…+120°C; R 1/2"; Mesh size 0,6mm; Suitable manometer MA001-50R-10-D
MA001-50R-10-D
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 50mm; Indicating range 0-10/0-145; Unit bar/psi; Connection 1/4"

Intrastat No.: 84811099
Country of origin: Germany Made in Europe
Weight: 1.16 Kg
Short Itemnumber: PR031218VMA

Scope of delivery

pressure regulator without manometer
https://www.stasto.eu/web/image/product.template/185208/image_1920?unique=2a86bbc

PR03-12-1/8-V
pressure regulator series PR03-V; body bronze; fine screen stainless steel; spring cover, seals FKM; max. inlet pressure 40bar; operating pressure range 1...8bar; medium temperature -10…+120°C; R 1/2"; mesh size 0,6mm; suitable manometer MA001-50R-10-D
MA001-50R-10-D
bourdon tube manometer series MA001; body sheet steel; measuring unit, motion work copper based alloy; front glass acryl; ambient temperature -20...+60°C; medium temperature max. +60°C; connection rear; class 1,6; diameter 50mm; indicating range 0-10/0-145; unit bar/psi; connection 1/4"

217,90 € 217.9 EUR 217,90 €

Not Available For Sale

excl. tax
  • Male thread
  • Mesh size
  • Outlet pressure
  • Inlet pressure
  • Medium temperature
  • Suitable manometer

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Mesh size 0,6 mm
Suitable manometer MA001-50R-10-D
Outlet pressure 1...8 bar
Medium temperature -10...+120 °C
All specifications (6)
Mesh size 0,6 mm
Suitable manometer MA001-50R-10-D
Outlet pressure 1...8 bar
Medium temperature -10...+120 °C
Male thread R 1/2"
Inlet pressure Max. 40 bar
Pressure regulator PR03-12-1/8-V
PR03-12-1/8-V x 1.0 Pcs
Pressure regulator PR03-12-1/8-V
Pressure regulator Series PR03-V; Body Bronze; Fine screen Stainless steel; Spring cover, Seals FKM; Max. Inlet pressure 40bar; Operating pressure range 1...8bar; Medium temperature -10…+120°C; R 1/2"; Mesh size 0,6mm; Suitable manometer MA001-50R-10-D
Bourdon tube manometer MA001-50R-10-D
MA001-50R-10-D x 1.0 Pcs
Bourdon tube manometer MA001-50R-10-D
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 50mm; Indicating range 0-10/0-145; Unit bar/psi; Connection 1/4"
Accessory Products
Valve insert 1/2"
VI-PR03-12-1/8-V
Valve insert 1/2"
