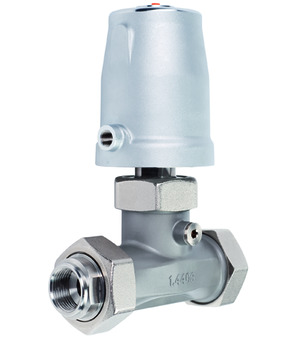

Pinch valve PI04-20-EZS-81
Pinch valve Series PI04; NO; Connection parts 1.4435; Tube EPDM Food safe; Control pressure has to be adjusted acc. to diagram in data-sheet; Medium temperature -30...+95°C; RP 2"; DN 50mm; Pressure range 0…6bar; Diameter Actuator 80mm
Intrastat No.: 84818079
Country of origin: Germany
Weight: 6.22 Kg
Short Itemnumber:PI0420EZS81
Country of origin: Germany
Weight: 6.22 Kg
Short Itemnumber:PI0420EZS81
pinch valve series PI04; NO; connection parts AISI 316L; tube EPDM food safe; control pressure has to be adjusted acc. to diagram in data-sheet; medium temperature -30...+95°C; RP 2"; DN 50mm; pressure range 0…6bar; diameter actuator 80mm
| dimension | |
|---|---|
| Female thread | RP 2" |
| DN | 50 mm |
| Diameter Actuator | 80 mm |
| pressure | |
| Pressure range | 0...6 bar |
No spare parts are available for this product.
