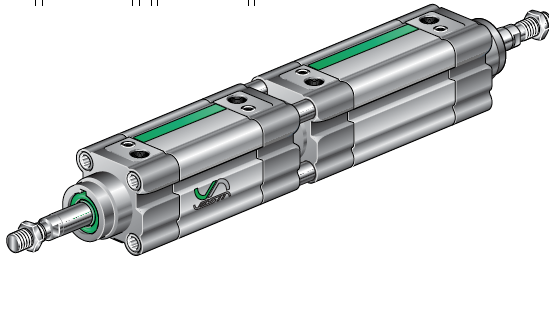

Profile magnetic cylinder PC10-80-300-250-R0-01
profile magnetic cylinder series PC10-R0; multi-position rear; according to ISO 15552, VDMA; double acting; pressure range 0,5...10bar; adjustable cushions; diameter 80mm; stroke 1 300mm; stroke 2 250mm; connection 3/8"; piston rod thread M20x1,5; push force at 6 bar 3014N; special version rod seal with circlip steel
Intrastat No.: 84123100
Country of origin: Italy
Weight: 9.6 Kg
Short Itemnumber: PC1080300250R001
Country of origin: Italy
Weight: 9.6 Kg
Short Itemnumber: PC1080300250R001
profile magnetic cylinder series PC10-R0; multi-position rear; according to ISO 15552, VDMA; double acting; pressure range 0,5...10bar; adjustable cushions; diameter 80mm; stroke 1 300mm; stroke 2 250mm; connection 3/8"; piston rod thread M20x1,5; push force at 6 bar 3014N; special version rod seal with circlip steel
| dimension | |
|---|---|
| Diameter | 80 mm |
| Connection | 3/8" |
| Piston rod thread | M20x1,5 |
| Stroke 1 | 300 mm |
| Stroke 2 | 250 mm |
| function | |
| Function | Double acting |
| pressure | |
| Push force at 6 bar | 3014 N |
No spare parts are available for this product.
