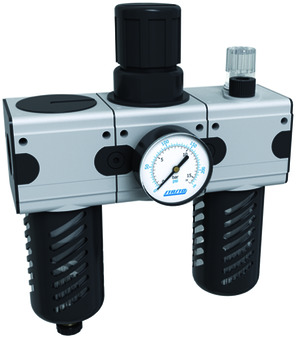

MU303-12-0,5/16-P-A

MU303-12-0,5/16-P-A

Maintenance unit; Relieving; Drain valve Automatically; Pressure range 0,5...16bar; Plastic bowl with protection cage; Connection 1/2"; Flow at 6bar/Δp=1bar 3000Nl/min; Max. inlet pressure 16bar; Filter element 5µm; Bowl With transparent inspection pipe

Intrastat No.: 84811005
Country of origin: Germany
Weight: 2.79 Kg
Short Itemnumber: MU303120.516PA
https://www.stasto.eu/web/image/product.template/162085/image_1920?unique=ab69362

maintenance unit; relieving; drain valve automatically; pressure range 0,5...16bar; plastic bowl with protection cage; connection 1/2"; flow at 6bar/Δp=1bar 3000Nl/min; max. inlet pressure 16bar; filter element 5µm; bowl with transparent inspection pipe

389,90 € 389.9 EUR 389,90 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Filter FI03-12
    FI03-12 x 1.0
    Filter FI03-12
    Filter Series Modul FI03; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Plastic bowl; Filter element 5µm; Connection 1/2"; Flow at 6bar/Δp=1bar 4000Nl/min
    Add to Cart
    PC-03-12-10
    PC-03-12-10 x 1.0
    PC-03-12-10
    Protection cage; Suitable for Maintenance units Series Modul; Connection 1/2", 3/4", 1"
    Add to Cart
    B0AV-FI03-12/10H
    B0AV-FI03-12/10H x 1.0
    B0AV-FI03-12/10H
    Plastic bowl; Suitable for Filter, Filter regulator Series Modul FI/FR03; Connection 12", 3/4", 1"; Drain valve automatisch
    Add to Cart
    RE03-12-0,5/16 x 1.0
    RE03-12-0,5/16
    Pressure regulator; Relieving; Connection 1/2"; Flow at 6bar 5700Nl/min; Pressure range 0,5-16bar; Max. inlet pressure 16bar
    Add to Cart
    Lubricator LU03-12H
    LU03-12H x 1.0
    Lubricator LU03-12H
    Lubricator Series Modul LU03; Inlet pressure Max. 16bar; Plastic bowl; Connection 1/2"; Flow at 6bar/Δp=1bar 5000Nl/min
    Add to Cart
    PC-03-12-10
    PC-03-12-10 x 1.0
    PC-03-12-10
    Protection cage; Suitable for Maintenance units Series Modul; Connection 1/2", 3/4", 1"
    Add to Cart
    Bourdon tube manometer MA001-50R-25-D
    MA001-50R-25-D x 1.0
    Bourdon tube manometer MA001-50R-25-D
    Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 50mm; Indicating range 0-25/0-360; Unit bar/psi; Connection 1/4"
