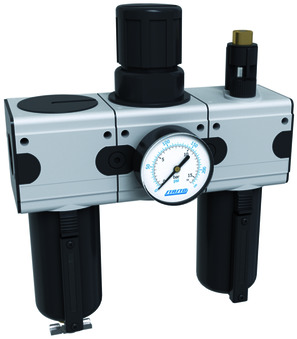

Maintenance unit MU303-10H-0,5/16-M

Maintenance unit MU303-10H-0,5/16-M

Maintenance unit Series Modul MU303-M; Relieving; Drain valve Semi-automatic; Pressure range 0,5...16bar; Metal bowl; Filter element 5µm; Connection 1"; Flow at 6bar/Δp=1bar 11300Nl/min; Max. inlet pressure 16bar

Wartungseinheit Serie Modul MU303-M
Wartungseinheit Serie Modul MU303-M
Intrastat No.: 84811005
Country of origin: Germany
Weight: 6.08 Kg
Short Itemnumber: MU30310H0.516M

Scope of delivery

maintenance unit, manometer
https://www.stasto.eu/web/image/product.template/182270/image_1920?unique=726d741

maintenance unit series Modul MU303-M; relieving; drain valve semi-automatic; pressure range 0,5...16bar; metal bowl; filter element 5µm; connection 1"; flow at 6bar/Δp=1bar 11300Nl/min; max. inlet pressure 16bar

695,10 € 695.1 EUR 695,10 €

Not Available For Sale

excl. tax
  • Connection
  • Dimension
  • Bowl
  • Max. inlet pressure
  • Flow at 6bar/Δp=1bar
  • Filter element
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 1"
Pressure range 0,5...16bar
Flow at 6bar/Δp=1bar 11300 Nl/min
Max. inlet pressure 16 bar
All specifications (7)
Documents
Data sheets, drawings and CAD files
Connection 1"
Pressure range 0,5...16bar
Flow at 6bar/Δp=1bar 11300 Nl/min
Max. inlet pressure 16 bar
Filter element 5 µm
Bowl With transparent inspection pipe
Brand STASTO

MU303-10H-0,5/16-M

Documents

3 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1
Filter FI03-10H-M
FI03-10H-M x 1.0 Pcs
Filter FI03-10H-M
Filter Series Modul FI03-M; Drain valve Semi-automatic; Inlet pressure Max. 20bar; Metal bowl; Filter element 5µm; Connection 1"; Flow at 6bar/Δp=1bar 10500Nl/min; Filter element 5µm
RE03-10H-0,5/16 x 1.0 Pcs
RE03-10H-0,5/16
Pressure regulator; Relieving; Connection 1"; Flow at 6bar 15000Nl/min; Pressure range 0,5-16bar; Max. inlet pressure 16bar
Bourdon tube manometer MA001-63R-25
MA001-63R-25 x 1.0 Pcs
Bourdon tube manometer MA001-63R-25
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 63mm; Indicating range 0-25; Unit bar; Connection 1/4"
Lubricator LU03-10H-M
LU03-10H-M x 1.0 Pcs
Lubricator LU03-10H-M
Lubricator Series Modul LU03-M; Inlet pressure Max. 20bar; Metal bowl; Connection 1"; Flow at 6bar/Δp=1bar 18000Nl/min; Bowl mit Sichtrohr; Inlet pressure Max. 20bar
