STASTO Allgemeine Preisliste (EUR)

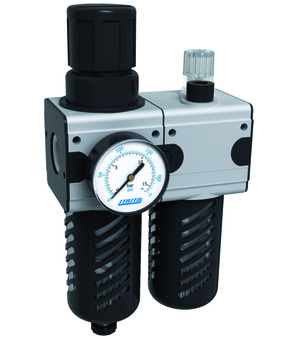

Maintenance unit 3/8"-1100

Maintenance unit 3/8"-1100

Maintenance unit Series Modul MU203-P; Relieving; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Pressure range 0,5...10bar; Plastic bowl with protection cage; Filter element 5µm; Connection 3/8"; Flow at 6bar/Δp=1bar 1100Nl/min

Wartungseinheit Serie Modul MU203-P
Wartungseinheit Serie Modul MU203-P
Intrastat No.: 84811005
Country of origin: Germany
Weight: 0.93 Kg
Short Itemnumber: MU203380.510P

Scope of delivery

maintenance unit, manometer
https://www.stasto.eu/web/image/product.template/108818/image_1920?unique=726d741

maintenance unit series Modul MU203-P; relieving; drain valve semi-automatic; inlet pressure max. 16bar; pressure range 0,5...10bar; plastic bowl with protection cage; filter element 5µm; connection 3/8"; flow at 6bar/Δp=1bar 1100Nl/min

182,20 € 182.2 EUR 182,20 €

Not Available For Sale

excl. tax
  • Connection
  • Dimension
  • Flow at 6bar/Δp=1bar
  • Filter element
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 3/8"
Pressure range 0,5...10bar
Flow at 6bar/Δp=1bar 1100 Nl/min
Filter element 5 µm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Connection 3/8"
Pressure range 0,5...10bar
Flow at 6bar/Δp=1bar 1100 Nl/min
Filter element 5 µm
Brand STASTO

MU203-38-0,5/10-P

Documents

4 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
FR03-38-0,5/10-X
FR03-38-0,5/10-X x 1.0 Pcs
FR03-38-0,5/10-X
Filter regulator; Relieving; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Plastic bowl; Connection 3/8"; Flow at 6bar 1450Nl/min; Pressure range 0,5-10bar; Filter element 5ym
PC-03-14H/38
PC-03-14H/38 x 2.0 Pcs
PC-03-14H/38
Protection cage; Suitable for Maintenance units Series Modul; Connection 1/4", 3/8"
MA001-4014R-16-D x 1.0 Pcs
MA001-4014R-16-D
Bourdon tube manometer; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 40mm; Indicating range 0-16/0-230; Unit bar/psi; Connection 1/4"
Lubricator LU03-38
LU03-38 x 1.0 Pcs
Lubricator LU03-38
Lubricator Series Modul LU03; Inlet pressure Max. 16bar; Plastic bowl; Connection 3/8"; Flow at 6bar/Δp=1bar 1900Nl/min
MCS03-14H/38
MCS03-14H/38 x 1.0 Pcs
MCS03-14H/38
Connection set For 2 units; Connection 1/4", 3/8"
KART0N109 x 1.0 Pcs
KART0N109
Packaging board, 220X125X86
