STASTO Allgemeine Preisliste (EUR)

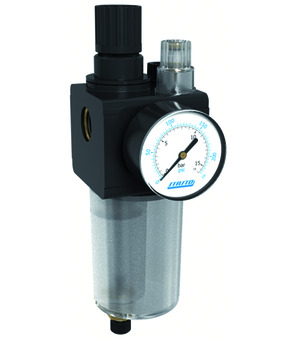

Maintenance unit 1“-3400-16-40

Maintenance unit 1“-3400-16-40

Maintenance unit; Relieving; Drain valve Manually; Pressure range 0,5...10bar; Plastic bowl; Connection 1"; Flow at 6bar/Δp=1bar 3400Nl/min; Max. inlet pressure 16bar; Filter element 40ym

Intrastat No.: 84811005
Country of origin: Germany
Weight: 2.74 Kg
Short Itemnumber: MU121100.510
https://www.stasto.eu/web/image/product.template/118025/image_1920?unique=96a79dc

maintenance unit; relieving; drain valve manually; pressure range 0,5...10bar; plastic bowl; connection 1"; flow at 6bar/Δp=1bar 3400Nl/min; max. inlet pressure 16bar; filter element 40ym

394,30 € 394.3 EUR 394,30 €

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 1"
Pressure range 0,5...10bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Connection 1"
Pressure range 0,5...10bar
Brand STASTO

MU121-10-0,5/10

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
B0-MU121-12H/10 x 1.0 Pcs
B0-MU121-12H/10
Plastic bowl; Suitable for Maintenance unit, Series MU121; Drain valve Manually; Connection 1/2", 3/4"; 1"; Flow rate 3400Nl/min
FE-MU121-12H/10-F40 x 1.0 Pcs
FE-MU121-12H/10-F40
Filter element; Suitable for Maintenance unit, Series MU121; Connection 1/2"; 3/4"; 1"; Flow rate 3400Nl/min; Pore size 40ym
MU121-10-0,5/10-X x 1.0 Pcs
Maintenance unit 1“-3400-16-40
Maintenance unit; Relieving; Drain valve Manually; Pressure range 0,5...10bar; Plastic bowl; Connection 1"; Flow at 6bar/Δp=1bar 3400Nl/min; Max. inlet pressure 16bar; Filter element 40ym
Bourdon tube manometer MA001-63R-16-D
MA001-63R-16-D x 1.0 Pcs
Bourdon tube manometer MA001-63R-16-D
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 63mm; Indicating range 0-16/0-230; Unit bar/psi; Connection 1/4"
