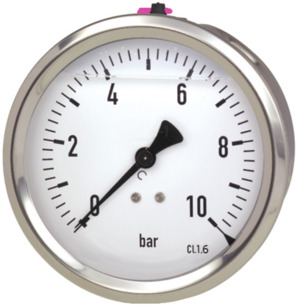

Bourdon tube manometer MA050-100R-V1,5
glycerin manometer; bourdon tube manometer; body stainless steel; front ring stainless steel bright; measuring unit, motion work copper based alloy; front glass acryl; ambient temperature -20...+60°C; medium temperature max. +60°C; connection 1/2" rear; class 1,0; diameter 100mm; indicating range -1...+1,5; unit bar
Intrastat No.: 90262040
Country of origin: Austria
Weight: 0.0 Kg
Short Itemnumber: MA050100RV1.5
Country of origin: Austria
Weight: 0.0 Kg
Short Itemnumber: MA050100RV1.5
glycerin manometer; bourdon tube manometer; body stainless steel; front ring stainless steel bright; measuring unit, motion work copper based alloy; front glass acryl; ambient temperature -20...+60°C; medium temperature max. +60°C; connection 1/2" rear; class 1,0; diameter 100mm; indicating range -1...+1,5; unit bar
| dimension | |
|---|---|
| Diameter | 100 mm |
| Connection | 1/2" |
| characteristics | |
| Indicating range | -1...+1,5 |
| Unit | bar |
| Class | 1,0 |
No spare parts are available for this product.
