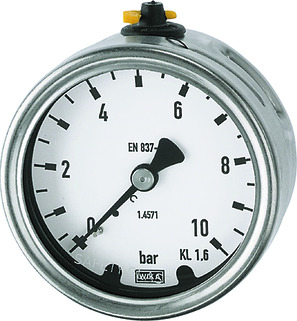

Bourdon tube manometer MA029-63R-100
manometer with single scale bar; bourdon tube manometer; body stainless steel AISI 304; measuring unit AISI 316L; front glass polycarbonat; ambient temperature -40...+60°C; medium temperature max. +200°C; connection rear; diameter 63mm; indicating range 0...100bar; connection 1/4"; class 1,6
Intrastat No.: 90262040
Country of origin: Austria
Weight: 0.015 Kg
Short Itemnumber: MA02963R100
Country of origin: Austria
Weight: 0.015 Kg
Short Itemnumber: MA02963R100
manometer with single scale bar; bourdon tube manometer; body stainless steel AISI 304; measuring unit AISI 316L; front glass polycarbonat; ambient temperature -40...+60°C; medium temperature max. +200°C; connection rear; diameter 63mm; indicating range 0...100bar; connection 1/4"; class 1,6
| dimension | |
|---|---|
| Diameter | 63 mm |
| Connection | G 1/4" |
| characteristics | |
| Indicating range | 0...100 |
| Unit | bar |
| Class | 1,6 |
No spare parts are available for this product.
