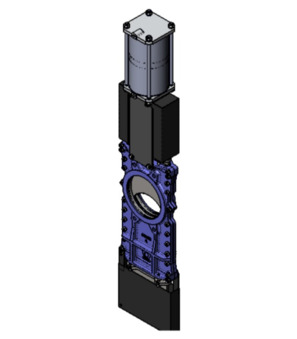

Knife gate valve with double acting actuator L1N2H2-5-300-B

Knife gate valve with double acting actuator L1N2H2-5-300-B

Knife gate valve with double acting actuator Series L1N; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 300mm; Length 70mm; Pressure range 0...6bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 100.0 Kg
Short Itemnumber: L1N2H25300B
https://www.stasto.eu/web/image/product.template/134231/image_1920?unique=3306e8d

knife gate valve with double acting actuator series L1N; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 300mm; length 70mm; pressure range 0...6bar

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Switch design
  • Coil
  • Flow rate
  • Suitable silencer

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 300 mm
Length 70 mm
pressure
Pressure range 0...6 bar
No spare parts are available for this product.
