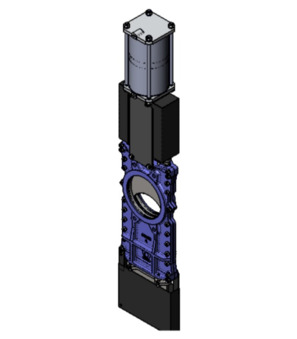

Knife gate valve with double acting actuator L1N02ISE2-B-125-PI-01
knife gate valve with double acting actuator; oversized; wafer type; body AISI 316; gate Duplex SAF 2205; soft sealed EPDM; with reinforced fixing ring; packing PTFE-synthetic; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 125mm; length 50mm; pressure range 0...2bar; incl. flushing holes
Country of origin: Spain
Weight: 0.0 Kg
Short Itemnumber: L1N02ISE2B125PI01
knife gate valve with double acting actuator; oversized; wafer type; body AISI 316; gate Duplex SAF 2205; soft sealed EPDM; with reinforced fixing ring; packing PTFE-synthetic; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 125mm; length 50mm; pressure range 0...2bar; incl. flushing holes
