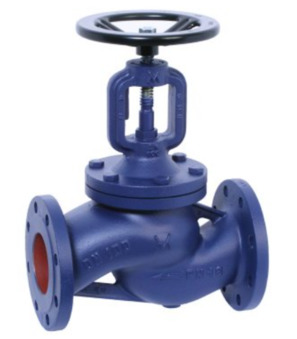

Globe valve GL151-20-W
Globe valve Series GL151; PN6; Body Cast iron EN-GJL-250; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Body Painted RAL5013 (Cobalt blue) Thickness 40µm; Medium temperature -10...+300°C; Pressure range 0...6bar; DN 20mm; Length 150mm
Intrastat No.: 84818071
Country of origin: Italy
Weight: 4.5 Kg
Short Itemnumber: GL15120W
Country of origin: Italy
Weight: 4.5 Kg
Short Itemnumber: GL15120W
globe valve series GL151; PN6; body cast iron EN-GJL-250; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; body painted RAL5013 (cobalt blue) thickness 40µm; medium temperature -10...+300°C; pressure range 0...6bar; DN 20mm; length 150mm
| DN | 20 mm |
| Length | 150 mm |
No spare parts are available for this product.
