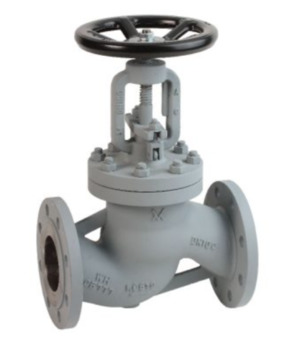

Globe valve GL130-20-W-A-3C
Globe valve Series GL130-A-3C; PN40; Body Steel; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Non rising stem; Medium temperature -10…+400°C; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; ATEX-design; DN 20mm; Length 150mm; Pressure range 0...40bar
Intrastat No.: 84818073
Country of origin: Italy
Weight: 5.3 Kg
Short Itemnumber:GL13020WA3C
Country of origin: Italy
Weight: 5.3 Kg
Short Itemnumber:GL13020WA3C
globe valve series GL130-A-3C; PN40; body steel; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; non rising stem; medium temperature -10…+400°C; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness; ATEX-design; DN 20mm; length 150mm; pressure range 0...40bar
| dimension | |
|---|---|
| DN | 20 mm |
| Length | 150 mm |
| design | |
| Design | ATEX |
| pressure | |
| Pressure range | 0...40 bar |
No spare parts are available for this product.
