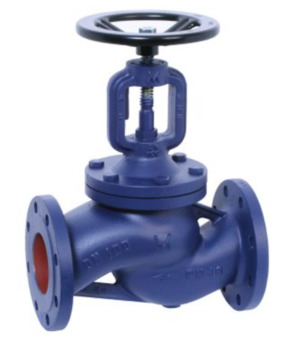

Globe valve Series GL119; PN16; Body Cast iron EN-GJL-250; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Body Painted RAL5013 (Cobalt blue) Thickness 40µm; Medium temperature -10...+300°C; Pressure range 0...16bar; ATEX-design; DN 65mm; Length 290mm
Country of origin: Italy
Weight: 19.5 Kg
Short Itemnumber: GL11965WA
globe valve series GL119; PN16; body cast iron EN-GJL-250; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; body painted RAL5013 (cobalt blue) thickness 40µm; medium temperature -10...+300°C; pressure range 0...16bar; ATEX-design; DN 65mm; length 290mm
Technical specifications
| Pressure range | 0...16bar |
|---|---|
| DN | 65 mm |
| Length | 290 mm |
| Design | ATEX |
| Pressure range | 0...16bar |
| DN | 65 mm |
| Length | 290 mm |
| Design | ATEX |
GL119-65-W-A
