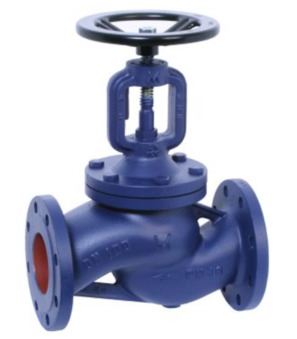

globe valve PN16; housing cast iron EN-GJL-250; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; housing painted RAL5013 (cobalt blue) thickness 40µm; medium temperature -10...+300°C; pressure range 0...16bar; ATEX-design; DN 40mm; length 200mm; with control cone
Country of origin: Italy
Short Itemnumber: GL11940WAC
globe valve PN16; housing cast iron EN-GJL-250; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; housing painted RAL5013 (cobalt blue) thickness 40µm; medium temperature -10...+300°C; pressure range 0...16bar; ATEX-design; DN 40mm; length 200mm; with control cone
Technical specifications
| Pressure range | 0...16bar |
|---|---|
| DN | 40 mm |
| Length | 200 mm |
| Design | ATEX |
| Pressure range | 0...16bar |
| DN | 40 mm |
| Length | 200 mm |
| Design | ATEX |
GL119-40-W-AC
Documents
Czech / Čeština
Data Sheets
1-
PDF
Datový list · uzavírací ventil série GL119 · CS
Data sheet 157 KB Updated 13/06/2026
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Absperrventil Serie GL119 · DE
Data sheet 157 KB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Globe valve Series GL119 · EN
Data sheet 155 KB Updated 13/06/2026
Hungarian / Magyar
Data Sheets
1-
PDF
Adatlap · elzárószelep sorozat GL119 · HU
Data sheet 157 KB Updated 13/06/2026
Polish / Język polski
Data Sheets
1-
PDF
Arkusz danych · zawór odcinający Seria GL119 · PL
Data sheet 159 KB Updated 13/06/2026
Slovenian / slovenščina
Data Sheets
1-
PDF
Podatkovni list · Zaporni ventil serija GL119 · SL
Data sheet 157 KB Updated 13/06/2026
Serbian (Latin) / srpski
Data Sheets
1-
PDF
Tehnički list · ravnozaporni ventil serije GL119 · SRLATIN
Data sheet 157 KB Updated 13/06/2026
