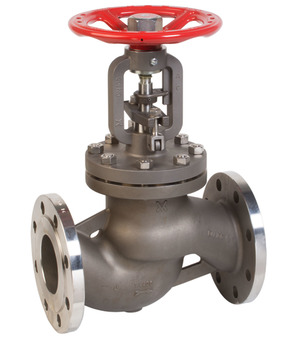

Globe valve GL116-40-W-3C
Globe valve Series GL116-W-3C; PN40; With bellows; Body 1.4408; Seat, Cone, Stem Stainless steel 1.4401; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Medium temperature -10..+400°C; Incl. Inspection certificate EN-10204-3.1 For material, pressure and tightness; DN 40mm; Length 200mm; Pressure range 0…40bar
Intrastat No.: 84818073
Country of origin: Italy
Weight: 11.3 Kg
Short Itemnumber: GL11640W3C
Country of origin: Italy
Weight: 11.3 Kg
Short Itemnumber: GL11640W3C
globe valve series GL116-W-3C; PN40; with bellows; body AISI 316; seat, cone, stem stainless steel AISI 316; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; medium temperature -10..+400°C; incl. inspection certificate EN-10204-3.1 for material, pressure and tightness; DN 40mm; length 200mm; pressure range 0…40bar
| dimension | |
|---|---|
| DN | 40 mm |
| Length | 200 mm |
| pressure | |
| Pressure range | 0...40 bar |
No spare parts are available for this product.
