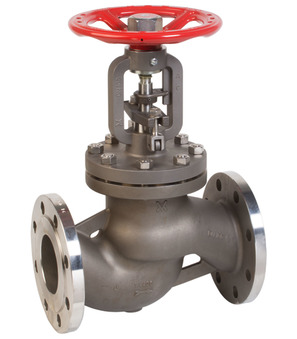

globe valve; PN40; bellow; housing AISI 316; seat, control cone, stem stainless steel AISI 316; seat seal PTFE; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; medium temperature -10...+400°C; pressure range 0...40bar; DN 15mm; length 130mm; locking device; ATEX according to 94/9/EC; vacuum-test 3 x 10-9 mbar/l/sec. in both directions
globe valve; PN40; bellow; housing AISI 316; seat, control cone, stem stainless steel AISI 316; seat seal PTFE; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; medium temperature -10...+400°C; pressure range 0...40bar; DN 15mm; length 130mm; locking device; ATEX according to 94/9/EC; vacuum-test 3 x 10-9 mbar/l/sec. in both directions
Technical specifications
| Design | ATEX |
|---|---|
| Brand | STASTO |
| Design | ATEX |
| Brand | STASTO |
